Schematic Listing

Schematic Listing

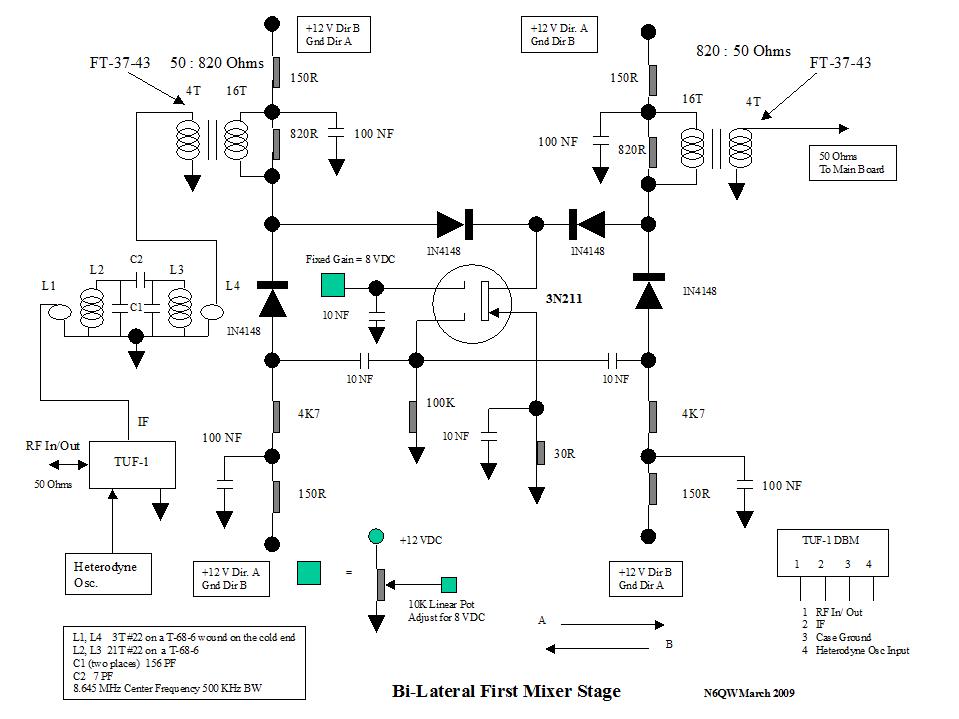

* First Mixer Stage

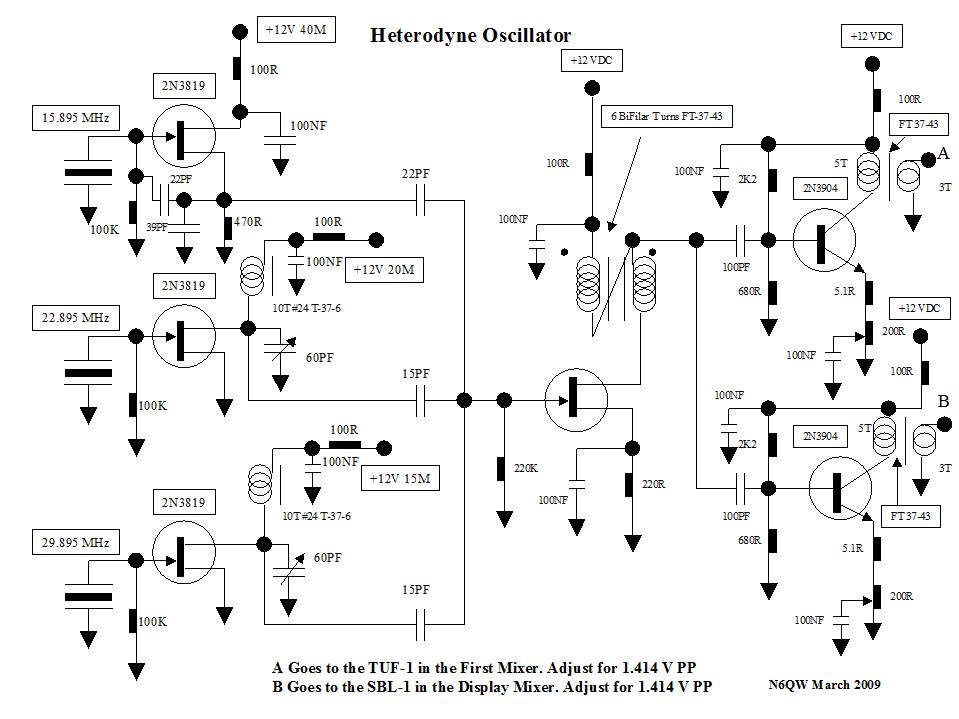

* Heterodyne Oscillator

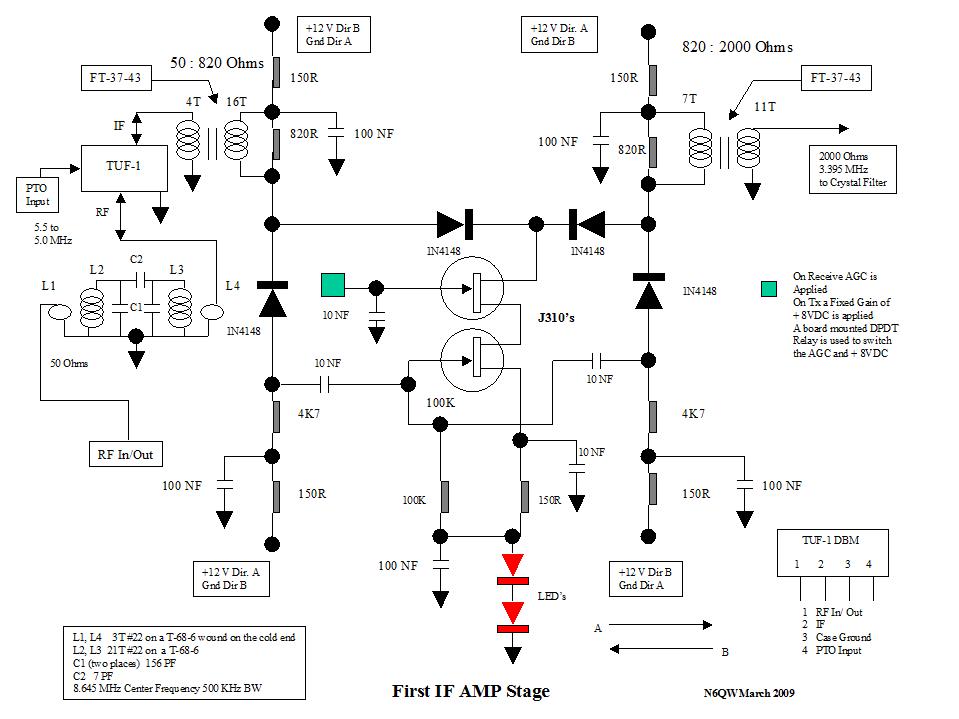

* First IF AMP Stage

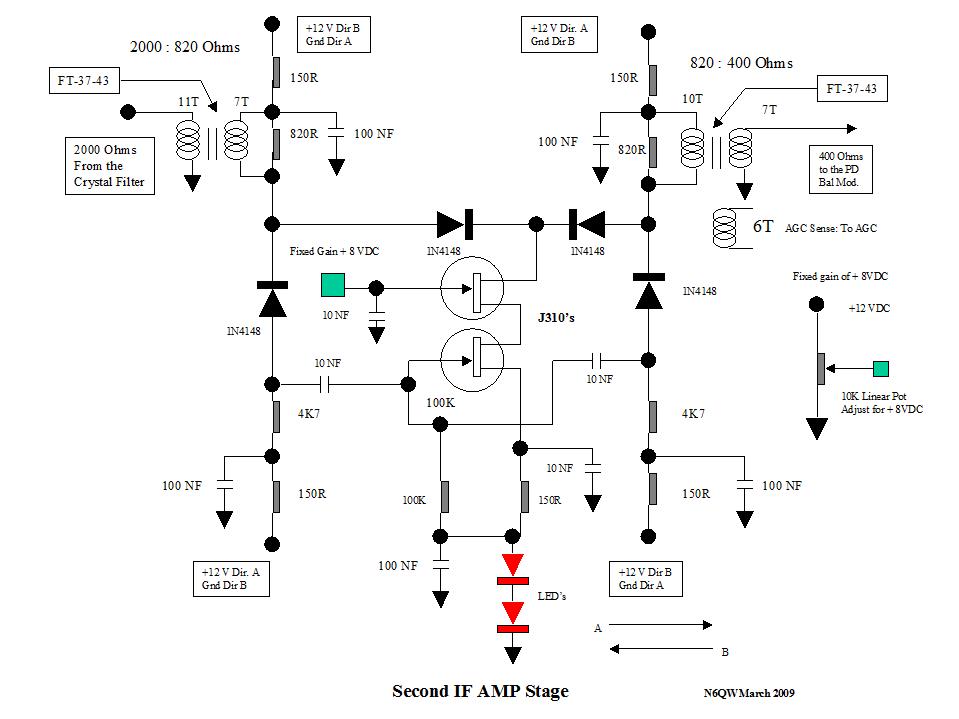

* Second IF AMP Stage

* Product Detector / Balanced Modulator

* Carrier Oscillator

* Audio Amplifier

* AGC Board

* Microphone Amplifier

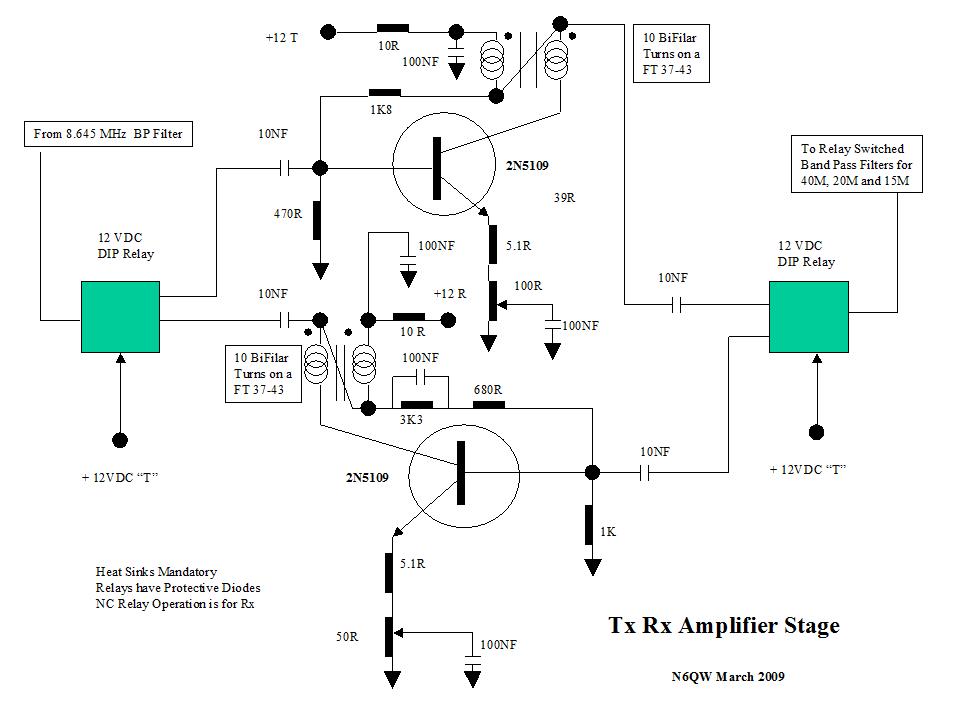

* Tx Rx Amplifier

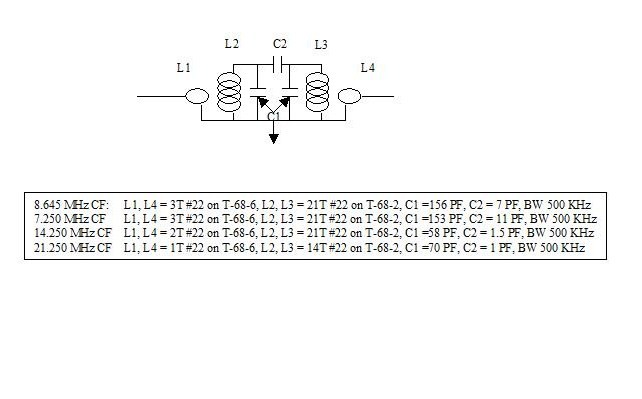

* Band Pass Filter

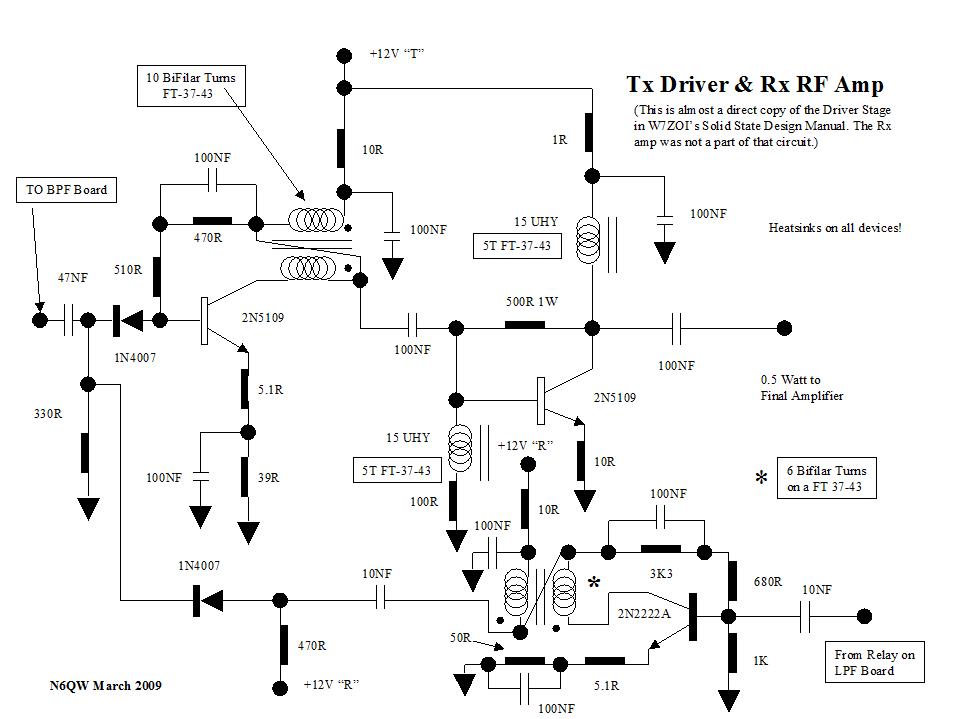

* Tx Driver & Rx RF Amplifier

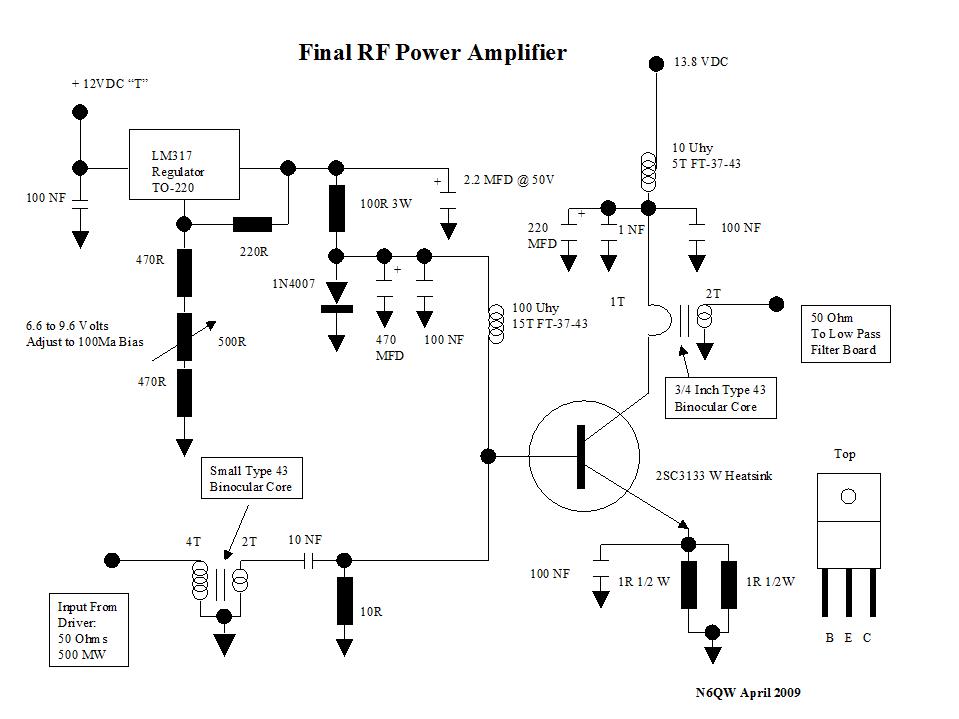

* Final RF Amplifier

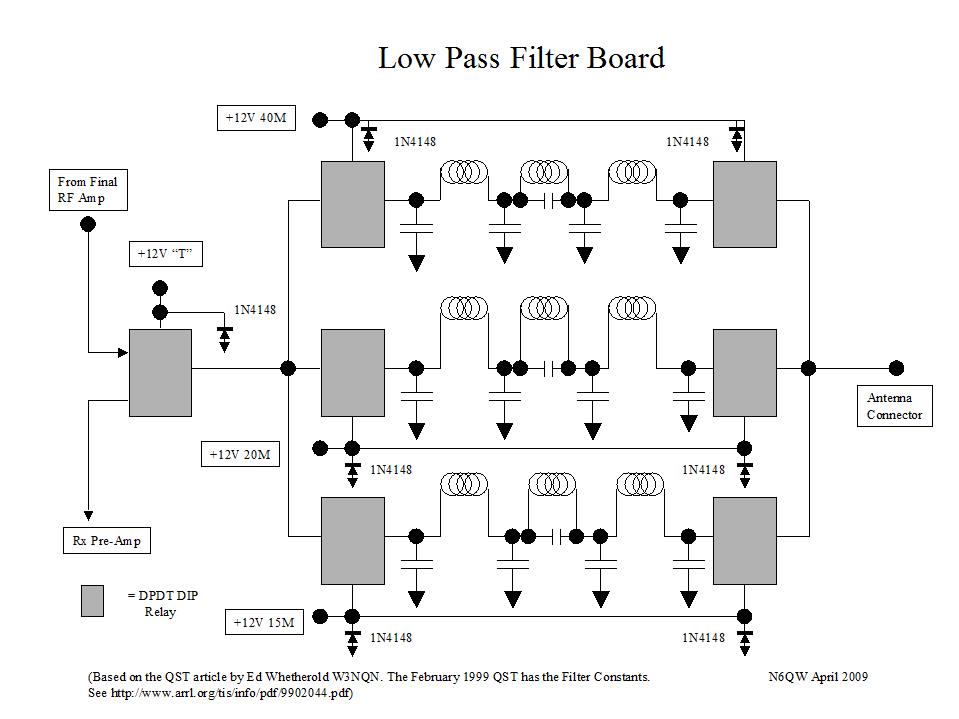

* Output Low Pass Filter

* TR Electronic Switching

* Display Band Pass Filter

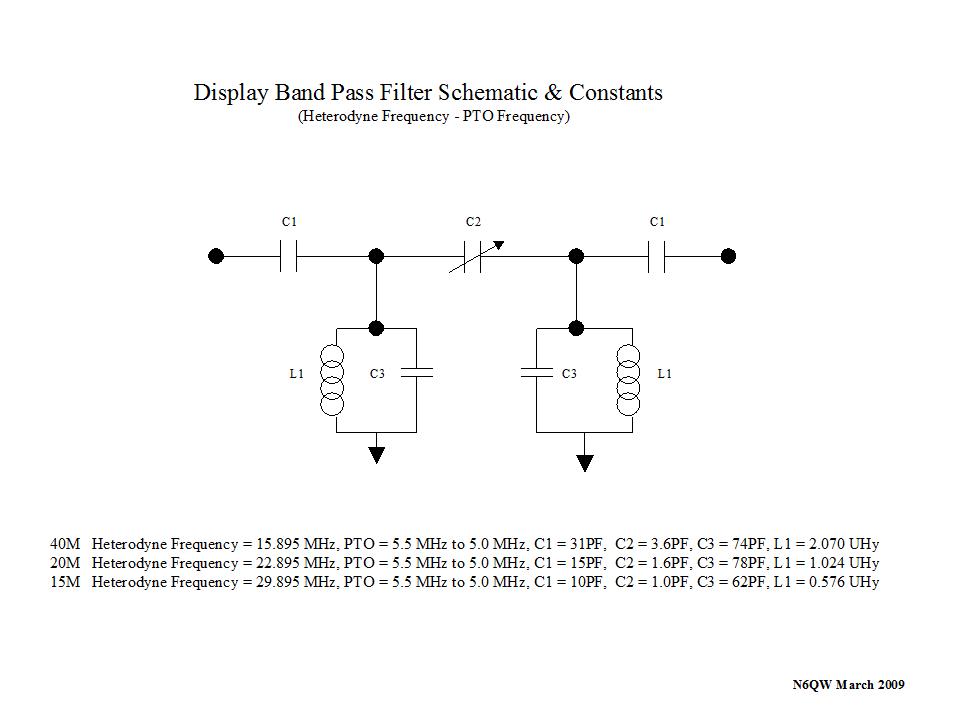

* Display Band Pass Filter Schematic and Constants

* Utility Gain Amplifier

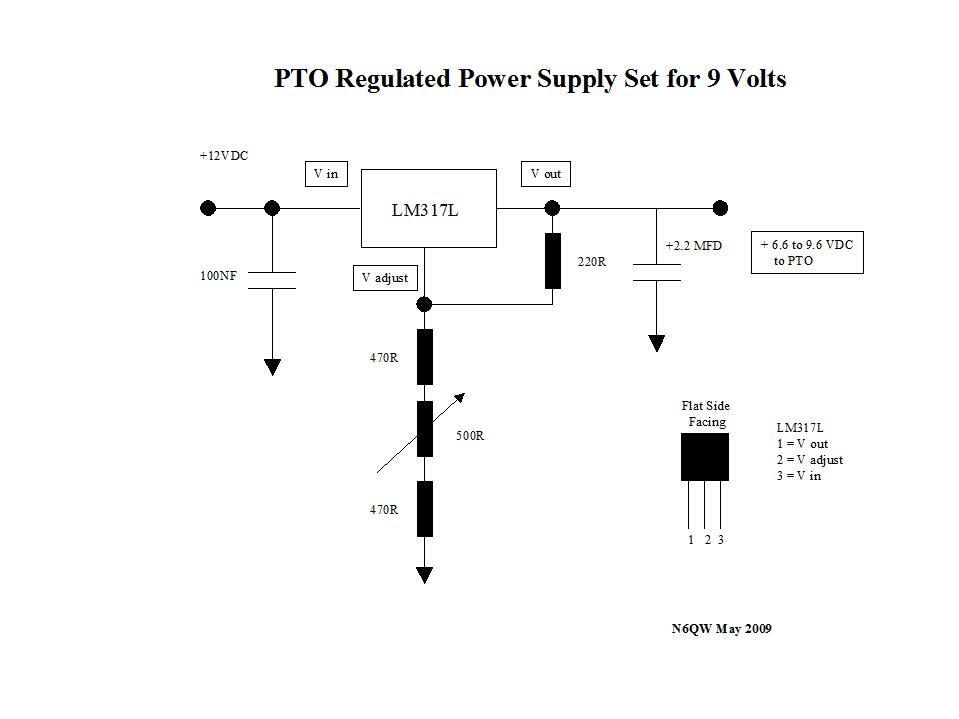

* PTO Regulated Power Supply
