The following information consists of downloadable files that were used in the Summer 2011 QRP Quarterly Article entitled "20 Meter Shirt Pocket Sized QRP SSB Transceiver. Author Pete Juliano N6QW
Figure
Title

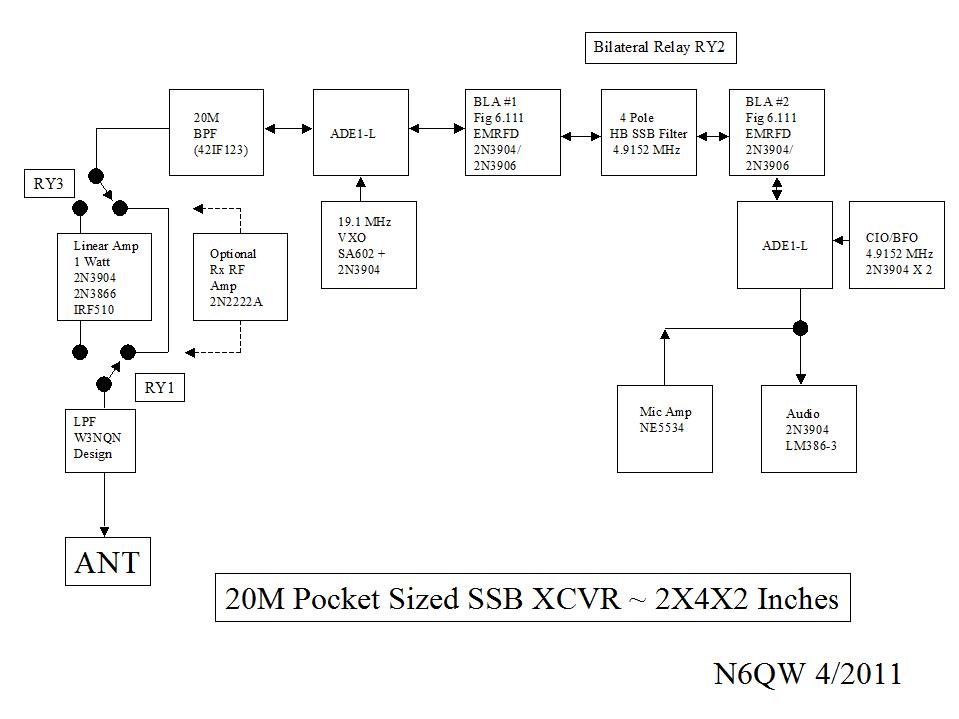

2
Block Diagram
6
Bilateral Amplifiers, Crystal Filter

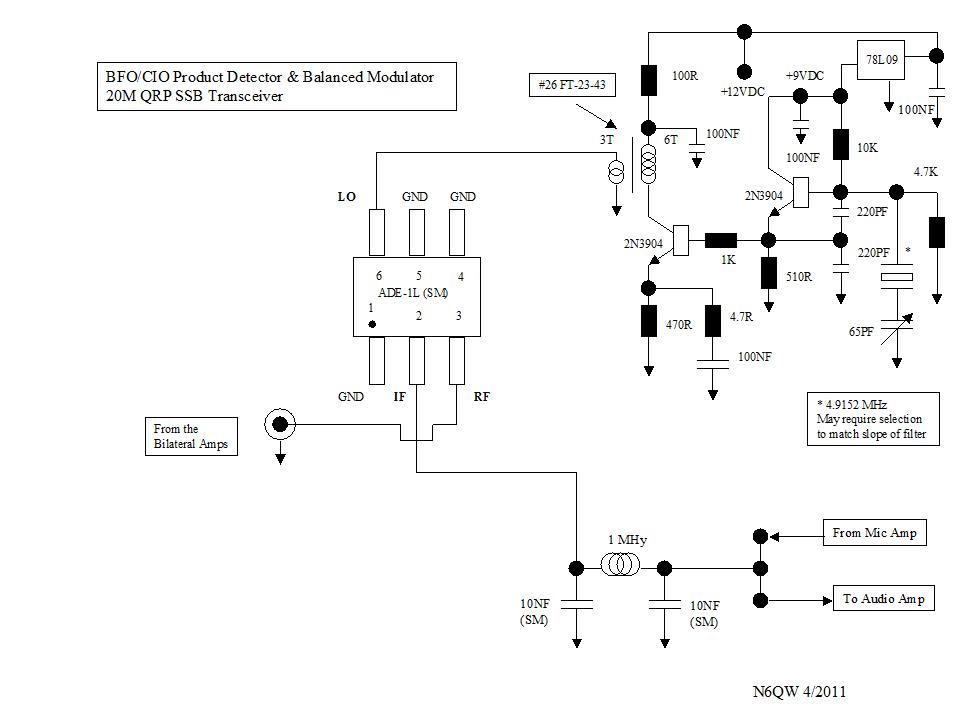

7
Product Detector, Balanced Modulator, BFO/CIO
9
Band Pass Filters, RxTx Mixer, VXO

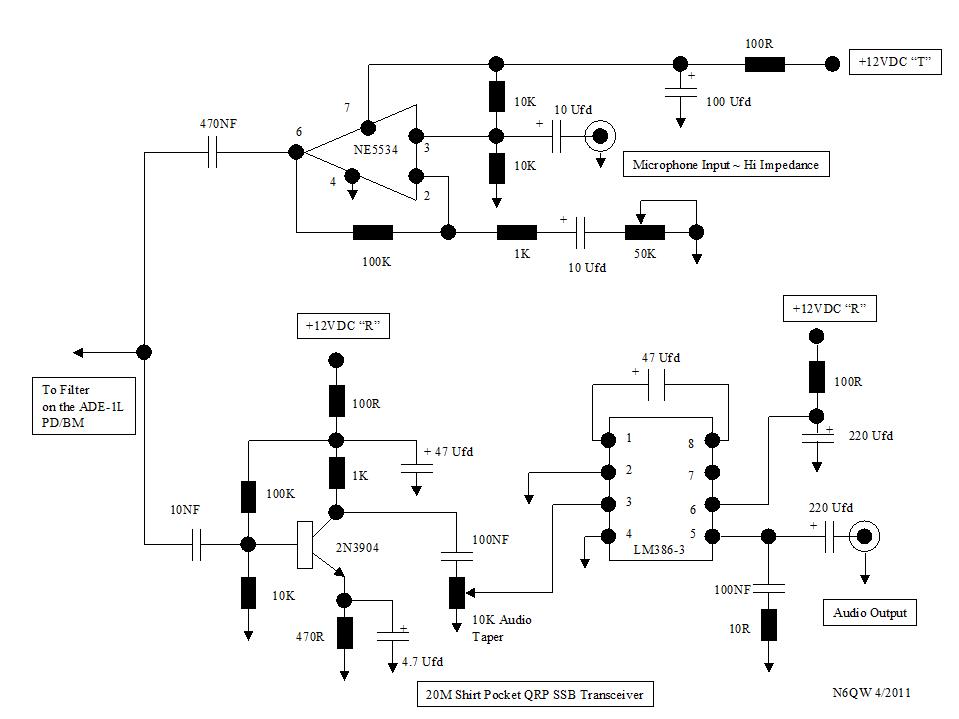

10
Audio/Microphone Amplifier

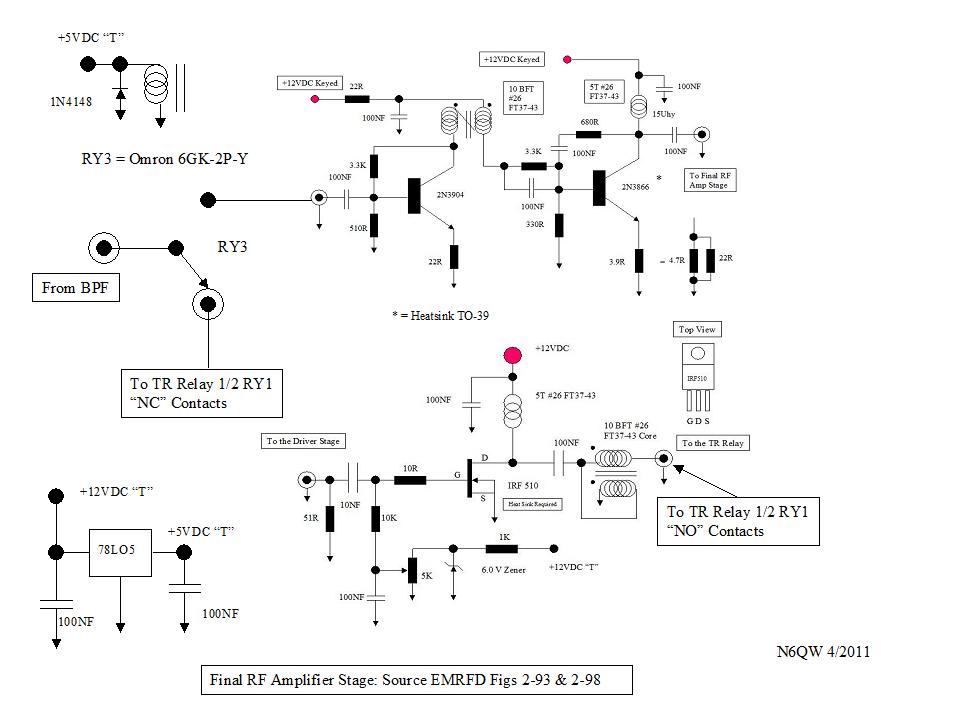

13
Transmit Linear Amp
15
Control Circuitry

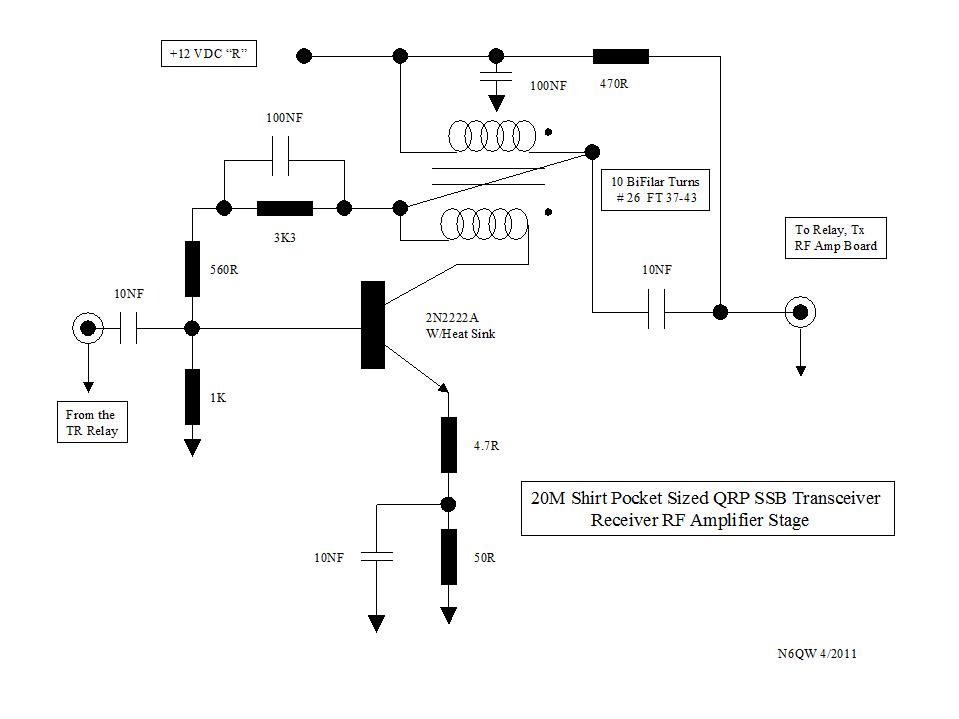

17
Receiver RF Amplifier

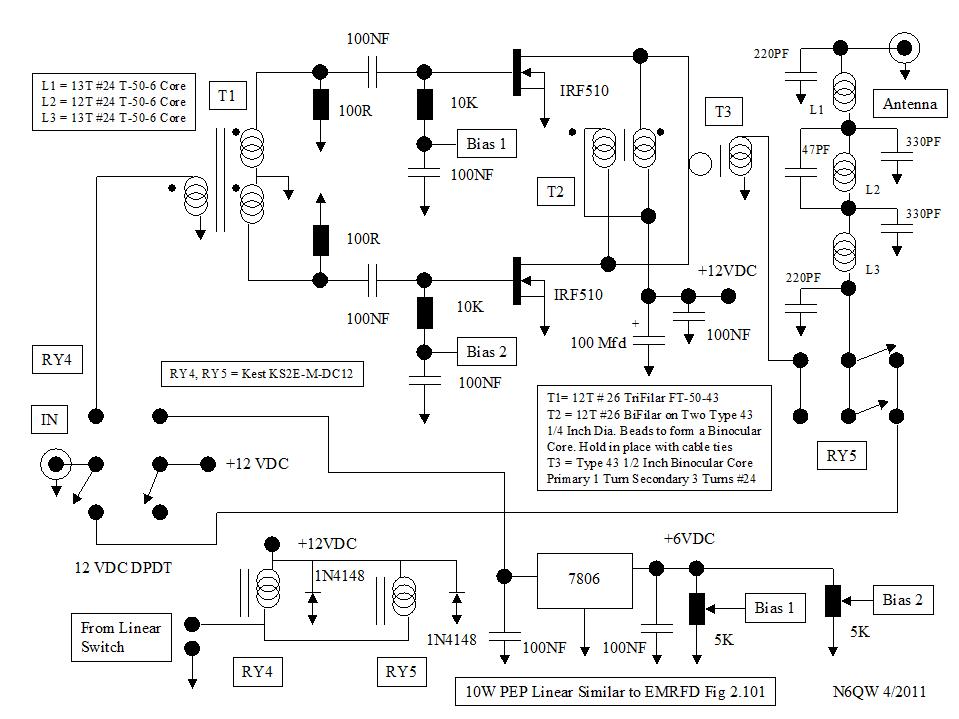

18
10 Watt Linear Amplifier
